Build Smarter Conversation Flows in Agent Studio with AI Routing

Modified on: Mon, 2 Mar, 2026 at 3:28 AM

Take conversation flows from linear to laser-precise with the new Agent Studio Router. This tool lets you send each user down the smartest path whether that’s an AI-detected intent, a rock-solid condition, or a simple pass-through all from a cleaner, floating configuration panel.

TABLE OF CONTENTS

What is Agent Studio Router?
Key Benefits of Agent Studio Router
AI Router (Intent-Based)
Conditional Router (Logic-Based)
“No Condition” Toggle
Sequential Node Integration
Floating Configuration Panel (UI Revamp)
How To Setup AI Routing in Agent Studio
Frequently Asked Questions
- Related Articles

What is AI Routing?

AI routing is the process of automatically directing a conversation based on what a user says, rather than relying on rigid keywords or fixed rule trees. Within Agent Studio, the Router node enables this by using natural-language intent detection (AI Router), traditional rule-based logic (Conditional Router), or even a simple no-logic pass-through giving builders precise control over where the conversation moves next without cluttering the canvas.

Unlike traditional flow builders that rely heavily on nested If/Else branches, AI routing allows conversations to adapt dynamically based on real user language. By combining AI-based routing with rule-based logic in the same Router node, Agent Studio gives you flexibility to balance intelligent interpretation with precise control.

Key Benefits of AI Routing

Automates routing with large-language-model intent classification, reducing manual If/Else branches.

Handles traditional variable checks in the same node, so technical and non-technical teams share one routing tool.

Works inside Sequential Nodes, allowing mid-sequence branching and return.

Fails gracefully with a “No Condition” path to keep chats moving even when no rules match.

New floating configuration panel keeps the entire graph visible while you tweak settings, speeding up complex builds.

AI Router (Intent-Based)

AI Router uses a large-language-model to classify a user’s latest message against your custom “Intents.” Each intent connects to a different branch, letting you pivot the flow when the user says things like “That solved my problem!” or “I’d like a refund.”

Define unlimited intents with plain-language labels.

View reasoning, confidence, and chosen intent in the console log for easy debugging.

Reference runtime variables inside intent labels for contextual matching (e.g., “upgrade to ”).

Conditional Router (Logic-Based)

Conditional Router evaluates static expressions such as contact fields, tags, or previous node outputs—ideal when you already know which data point should drive the branch (e.g., feedback == "positive").

Supports multiple conditions and comparison operators.

Order conditions top-to-bottom; the first match wins.

Acts as a single replacement for nested If/Else trees.

“No Condition” Toggle

Choose “No Condition” when you just need a visual bridge between two nodes. The router fires immediately, keeping your graph readable while postponing logic to later nodes.

Sequential Node Integration

Drop a Router inside any Sequential Node to inject a decision point mid-sequence. After the branch completes, the flow automatically returns to the next step in the original sequence unless you redirect it elsewhere. This unlocks dynamic detours (like a quick satisfaction survey) without breaking linear automations.

How To Setup AI Routing in Agent Studio

A well-structured Router setup ensures conversations move intelligently based on user intent or defined logic. Follow the steps below to configure both AI-based and rule-based routing inside your agent.

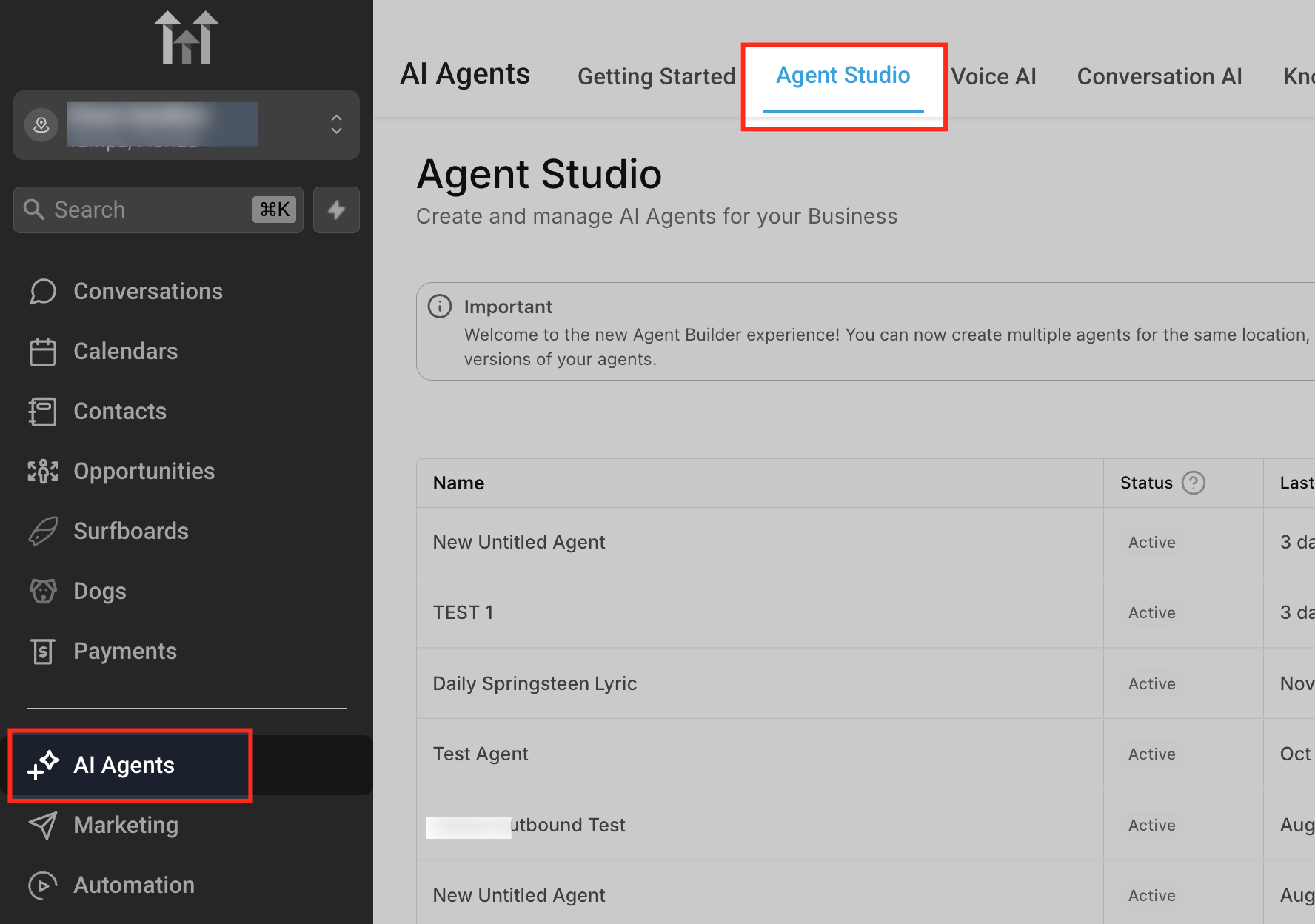

Access Agent Studio

From the left navigation menu, click AI Agents and then select the Agent Studio tab at the top of the page. This opens the Agent Studio dashboard where you can create, edit, and manage your AI agent conversation flows.

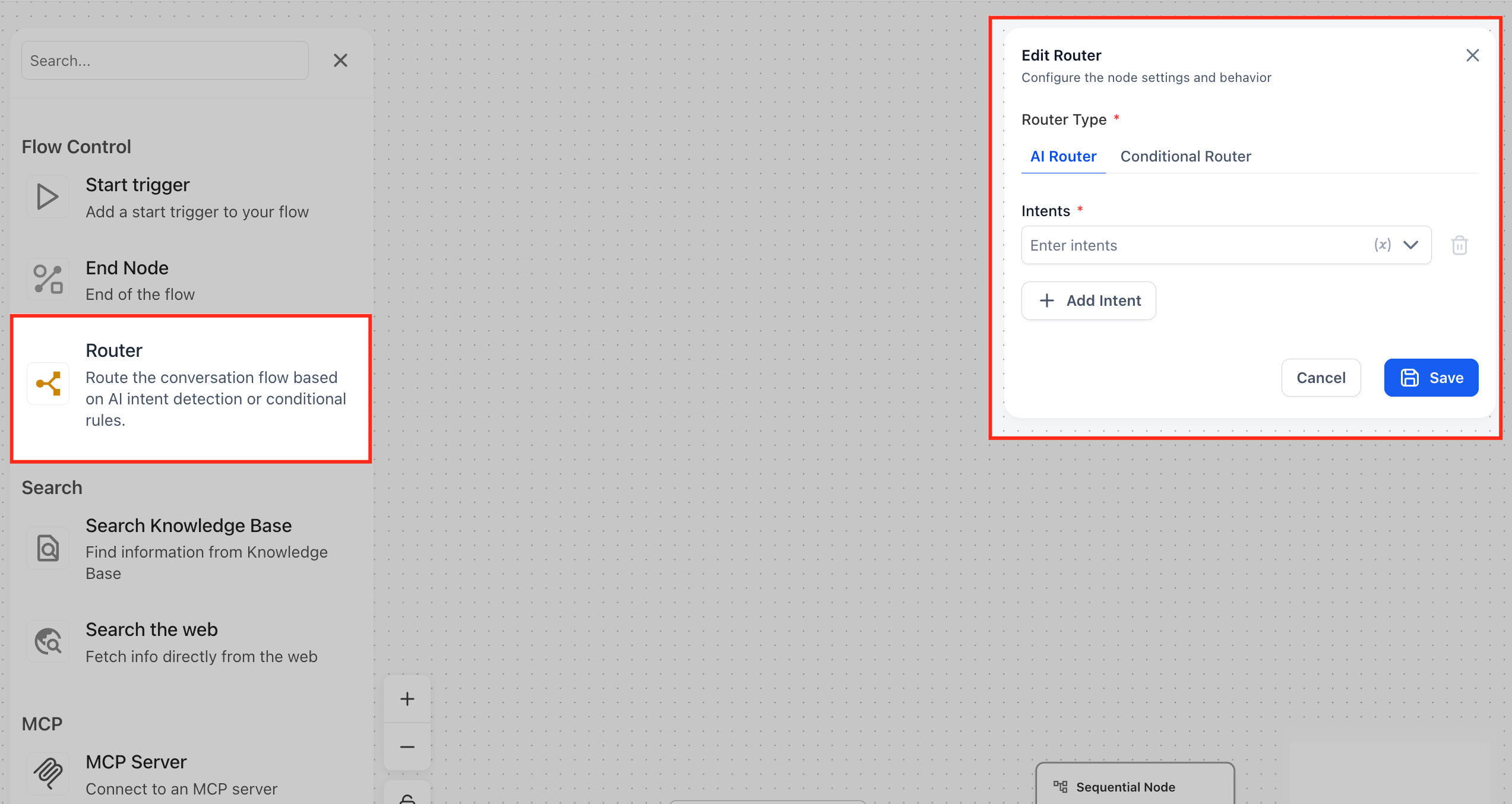

Add Router Node

From the Flow Control panel on the left, drag the Router node onto the canvas to insert a decision point in your conversation flow. Once placed, the Edit Router panel opens on the right, where you can choose the routing mode and begin configuring how the conversation should branch.

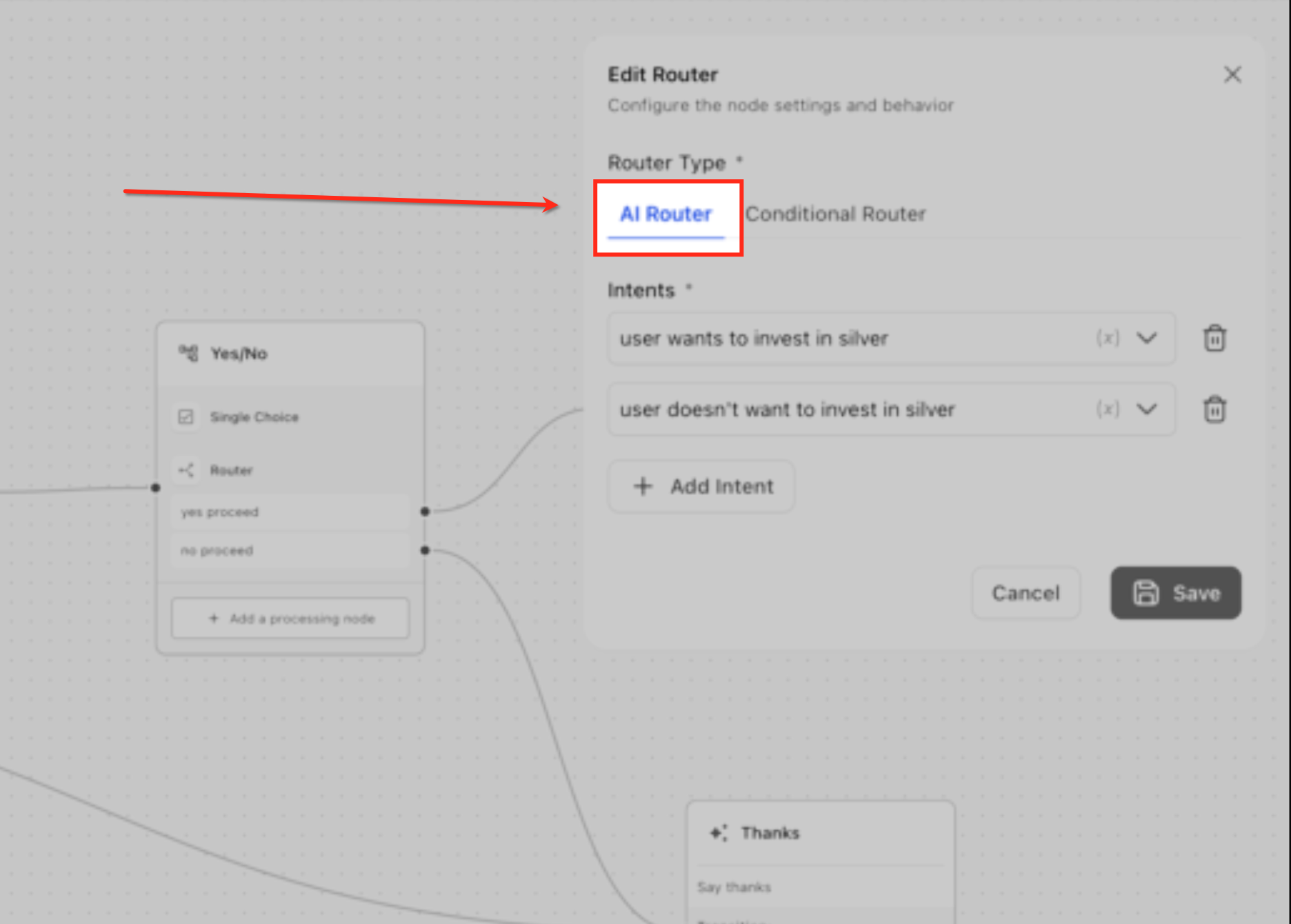

Select Router Type

In the Router configuration panel, choose between AI Router and Conditional Router under the “Router Type” section. This selection determines whether the routing decision will be based on AI intent detection or rule-based logic.

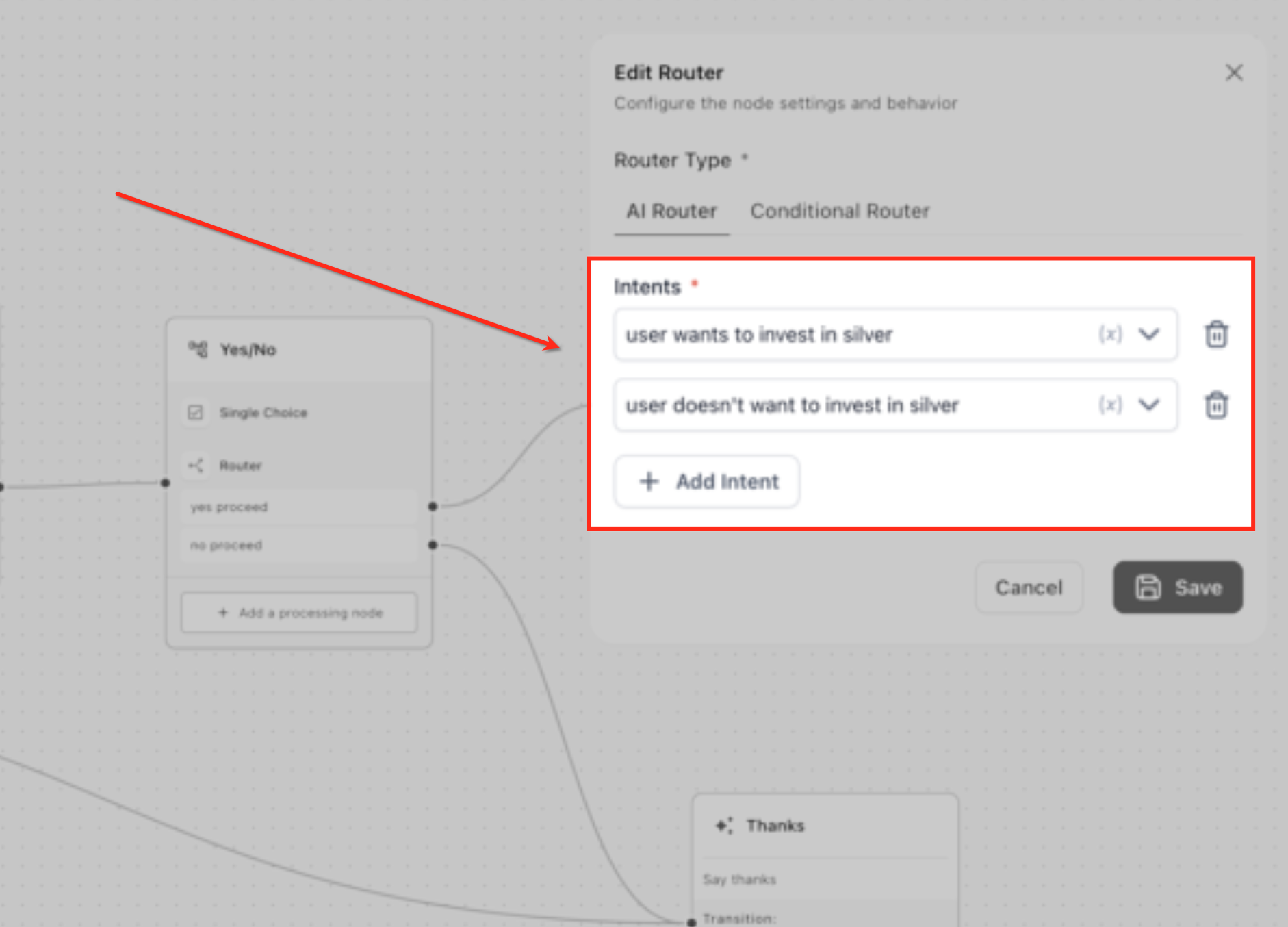

Add Intents

When using AI Router mode, add one or more intents that describe possible user responses. Each intent represents a branch the conversation can follow when the AI detects matching intent from the user’s message.

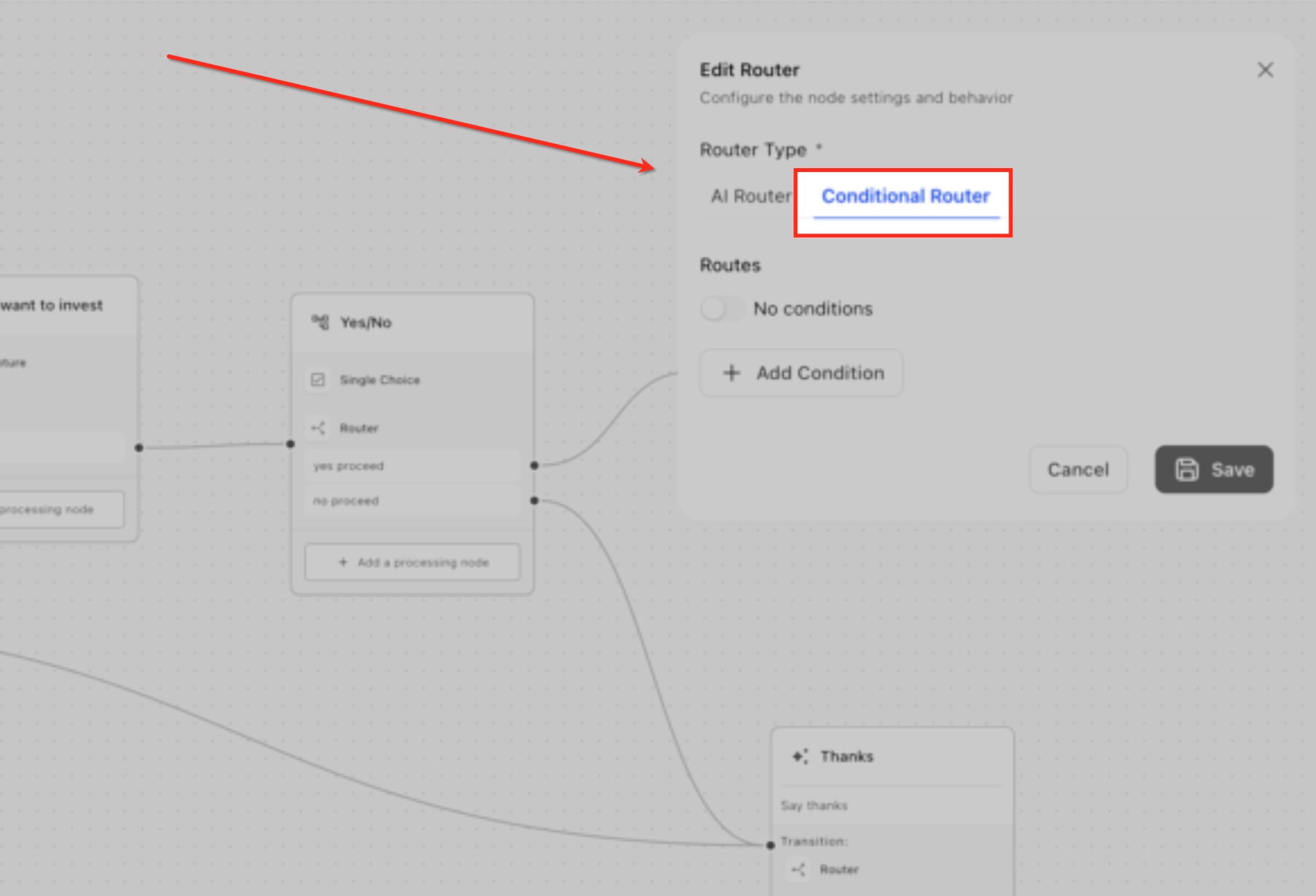

Choose Conditional Mode

Switch to Conditional Router if you want routing decisions to be based on structured data instead of natural language interpretation. This mode evaluates variables and predefined logic to determine the next step.

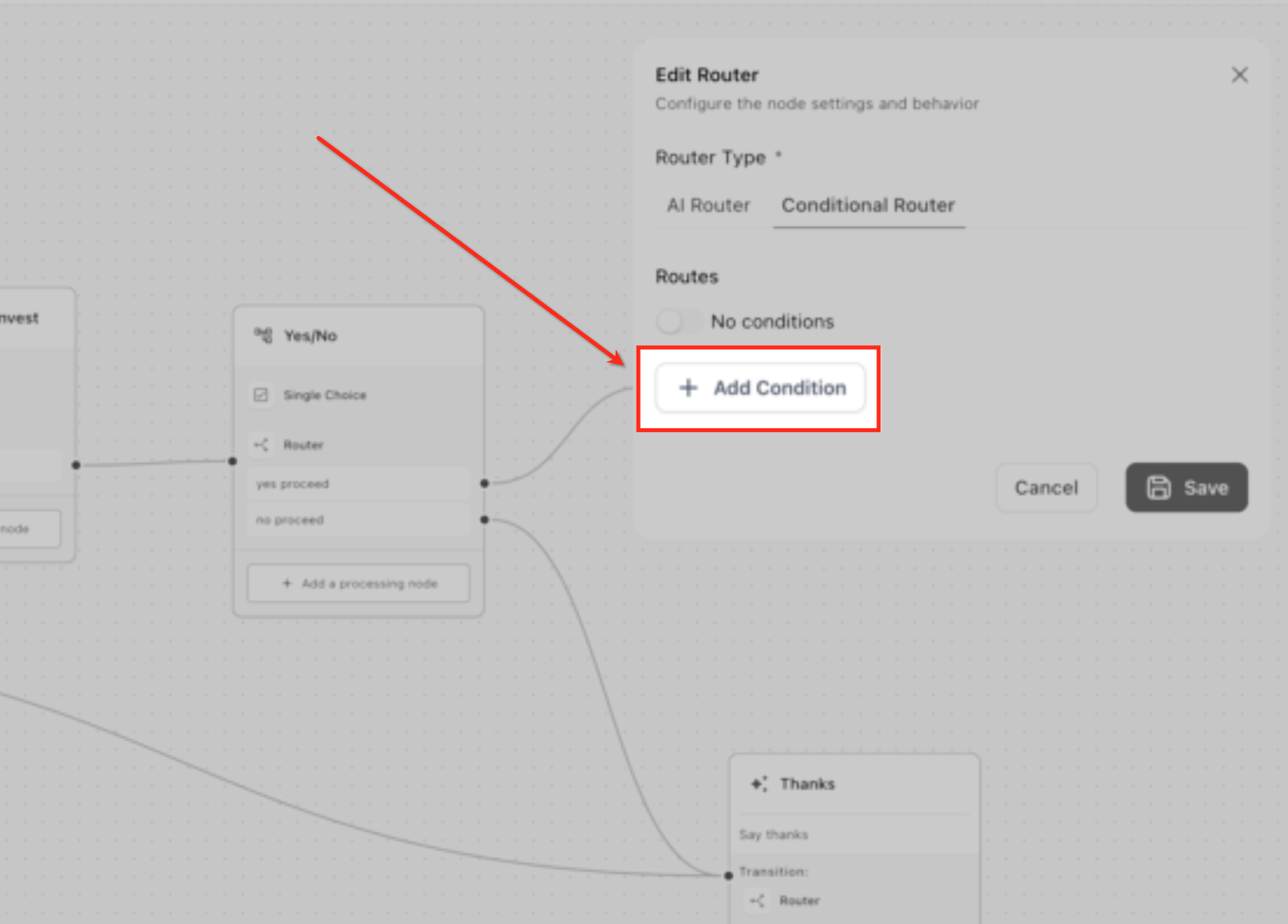

Add Condition

Click Add Condition to define the rule that will control routing behavior. This opens a configuration panel where you specify what variable to evaluate and how it should be compared.

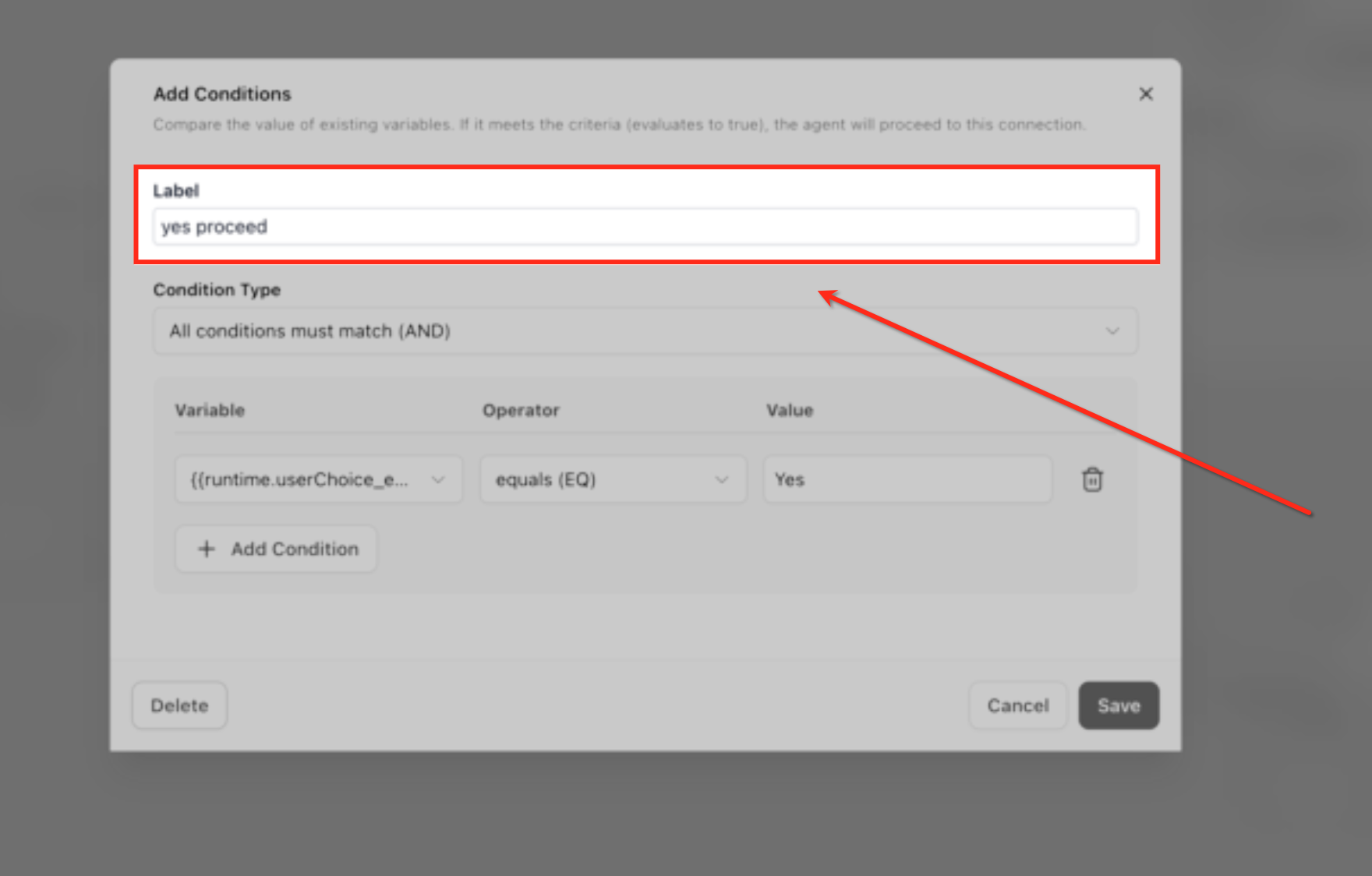

Label Branch

Enter a clear Label for the condition branch to identify it within the conversation graph. This label appears on the node connection and helps keep complex flows organized.

Set Condition Type

Select the Condition Type to define how multiple rules are evaluated. Choose whether all conditions must match (AND) or if any single condition can match (OR).

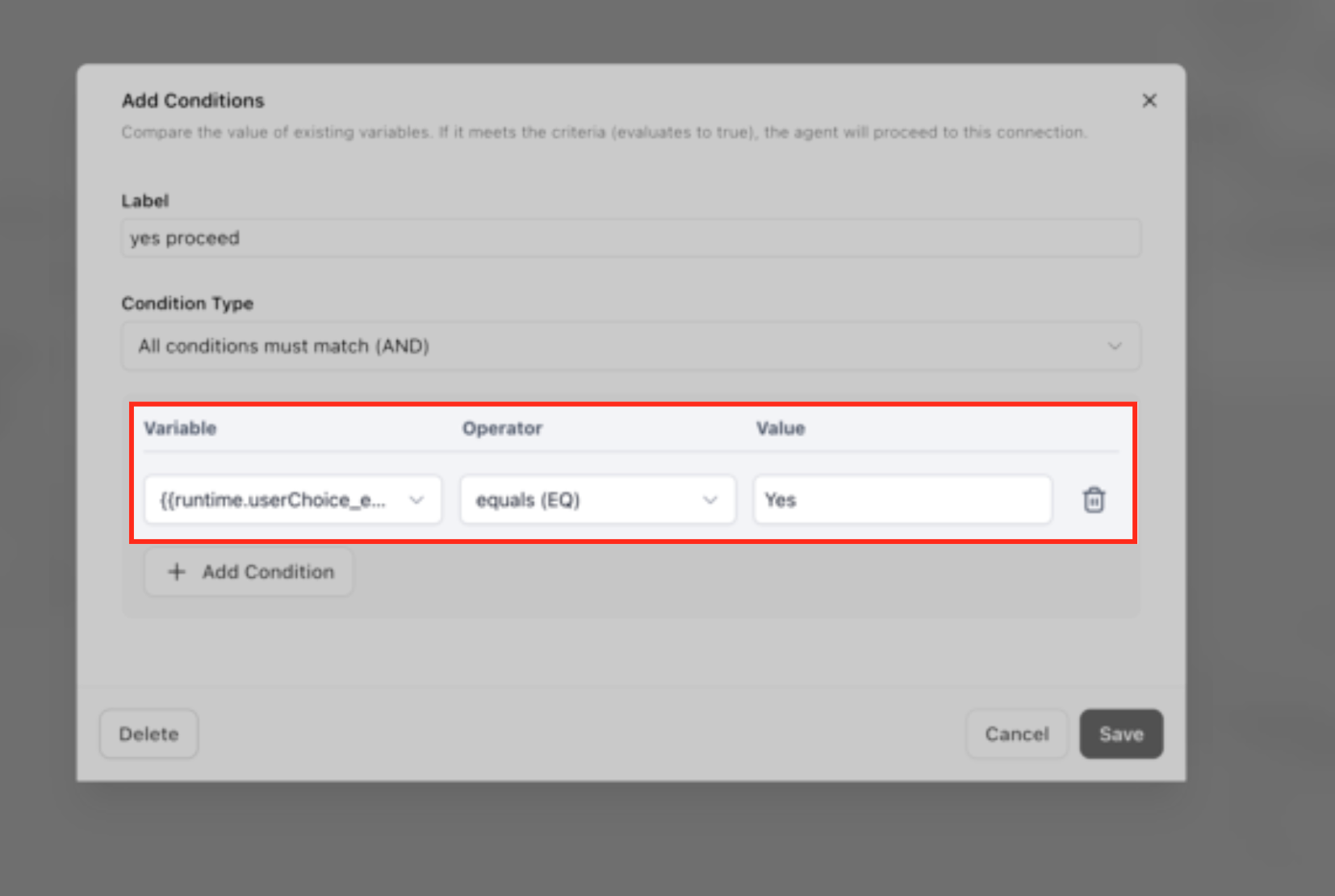

Configure Logic Fields

In the condition editor, select the Variable, choose the appropriate Operator, and define the expected Value. This tells the Router exactly what data to evaluate before proceeding down that branch.

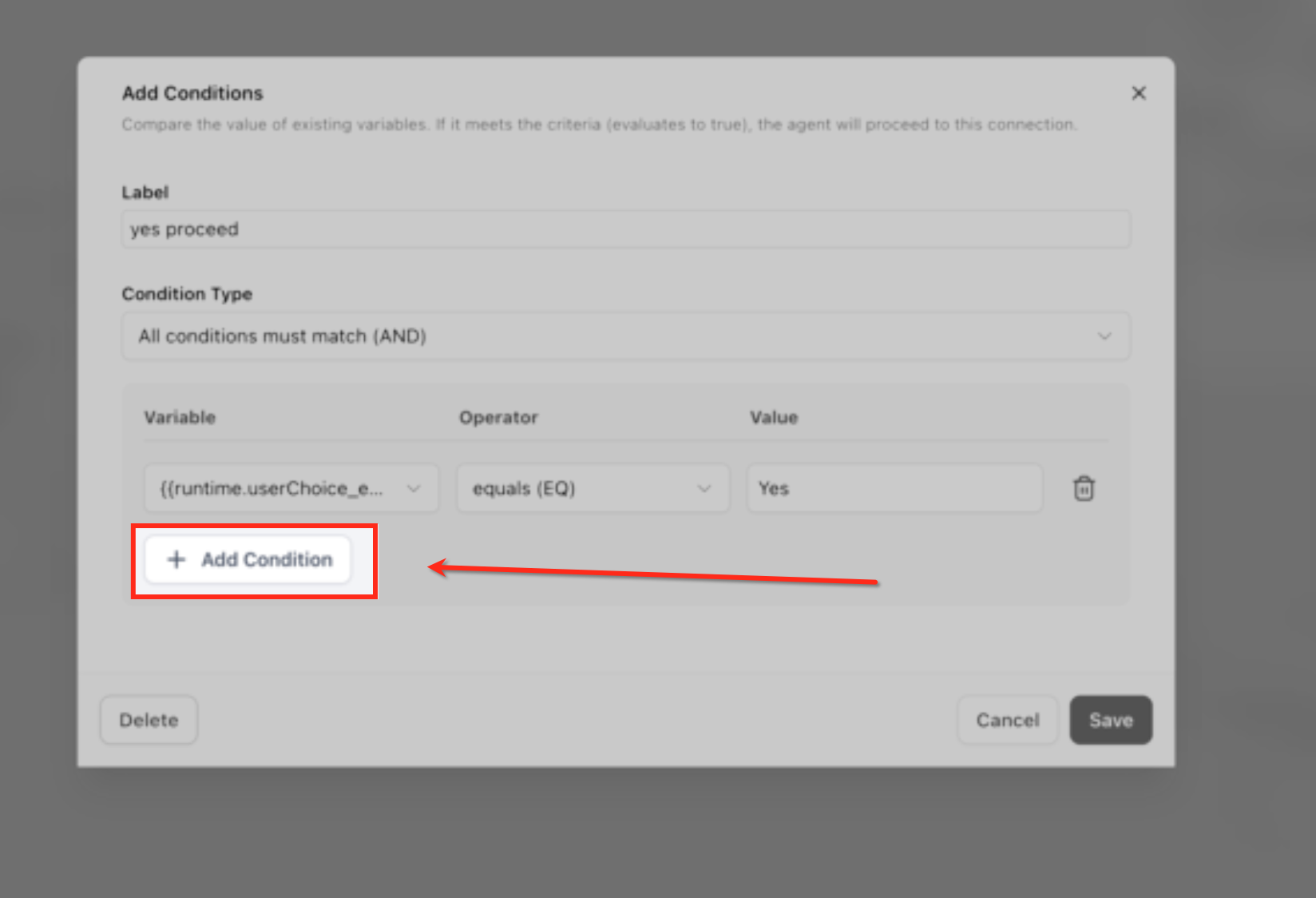

Add Additional Conditions

Use the Add Condition button to include more logical checks if needed. Multiple conditions allow you to create more precise routing behavior.

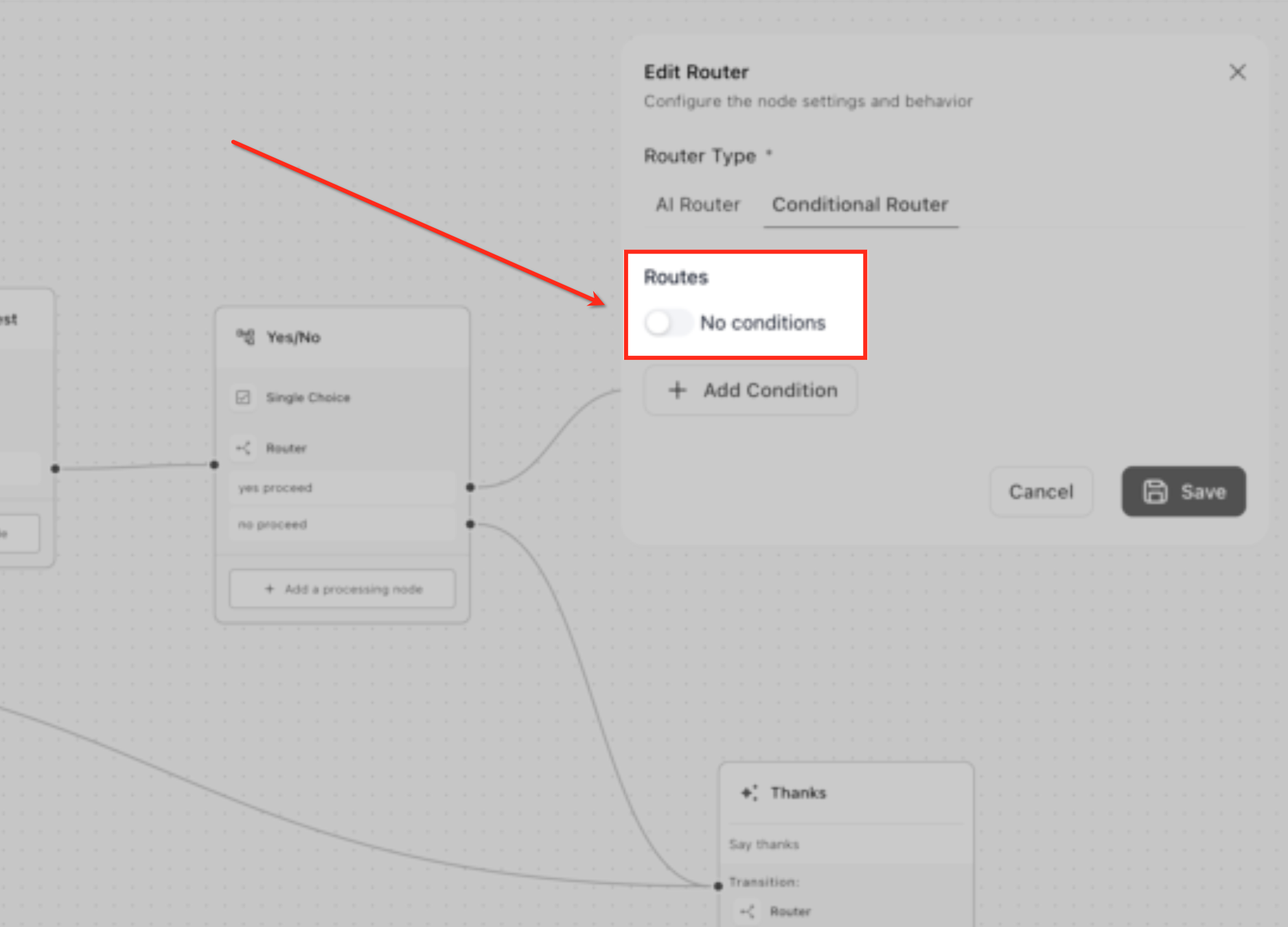

No Conditions Toggle

Enable No Conditions if you want the Router to act as a simple connector without applying any logic. This option immediately passes the flow forward while keeping the graph organized.

Frequently Asked Questions

Q: Does the Router add extra AI message cost?

Only AI Router executions count toward your LLM billing. Conditional and No-Condition modes are free.

Q: What happens if no intent or condition matches?

The flow follows the “Default” edge. If none is connected, the conversation ends with an error log entry.

Q: Can I mix AI and Conditional routing in one node?

One Router node supports one mode at a time, but you can chain multiple Routers back-to-back.

Q: Is intent training required?

No. The LLM classifies on-the-fly from your intent names and the current conversation context.

Q: How do I debug misplaced routes?

Open the Execution Log → Routing tab to see the detected intent, reasoning, and confidence or the evaluated condition string.

Q: Will the floating panel replace all pop-ups in Agent Studio?

Yes, future node types will use the same non-modal panel to keep the canvas visible.
